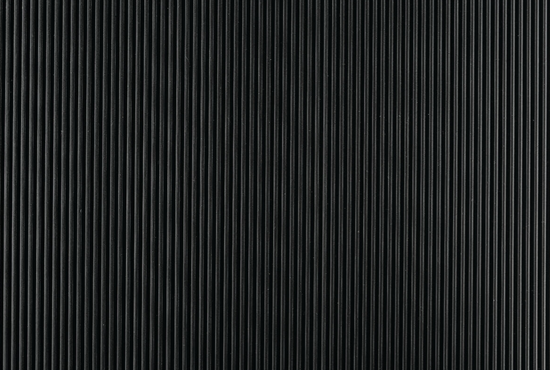

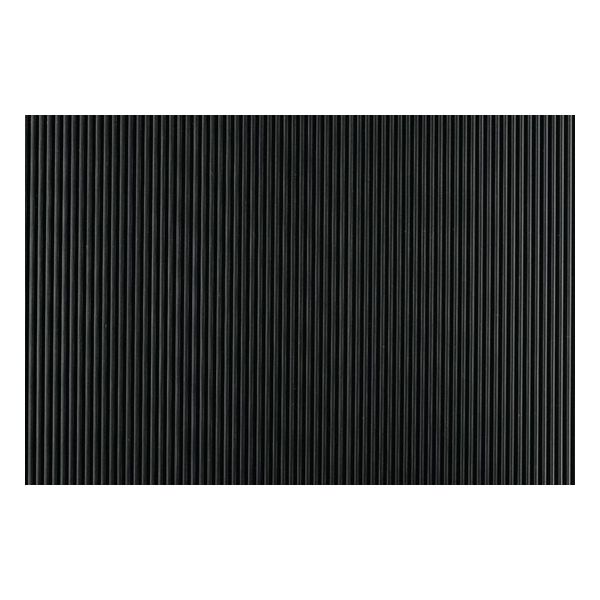

Corrugated Vinyl Switchboard Matting (ASTM)
Product Number: #0213V
Features
- Conforms to ANSI/ASTM D178, TYPE II, CLASS 2.
- Conforms to TABLE 3 for oil-resistance and flame-resistance.
- Dielectric strength 30,000 volts A.C.
- Proof tested at 20,000 volts A.C.
- Recommended maximum use voltage is 17,000 A.C.
- Corrugated pattern.
Ordering Info
COLOR: Black
| THICKNESS | CLASS | WIDTH | LENGTH | WT/SF |
| 1/4" | 2 | 24" | 75 LF | 1.67# |
| 1/4" | 2 | 36" | 75 LF | 1.67# |
| 1/4" | 2 | 48" | 75 LF | 1.67# |
| *3/8" |
3 | 36" | 75 LF | 2.51# |
| *1/2" | 4 | 36" | 30 LF | 3.56# |
| *FULL ROLLS ONLY | ||||
| DIELECTRIC | PROOF | RECOMMENDED | ||
| TYPE | CLASS | TEST VOLTAGE | TESTED | MAX. USE VOLTAGE |
| II | 2 | 30,000 VAC | 20,000 VAC | 17,000 VAC |
| II | 3 | 40,000 VAC | 30,000 VAC | 26,500 VAC |
| II | 4 | 50,000 VAC | 40,000 VAC | 36,000 VAC |
